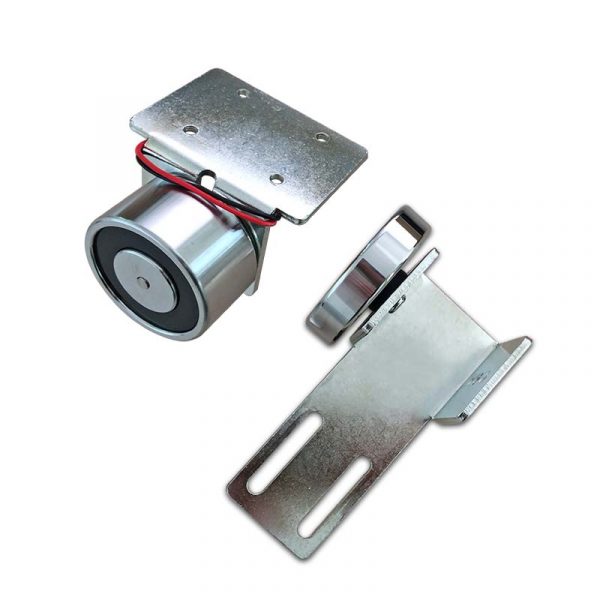

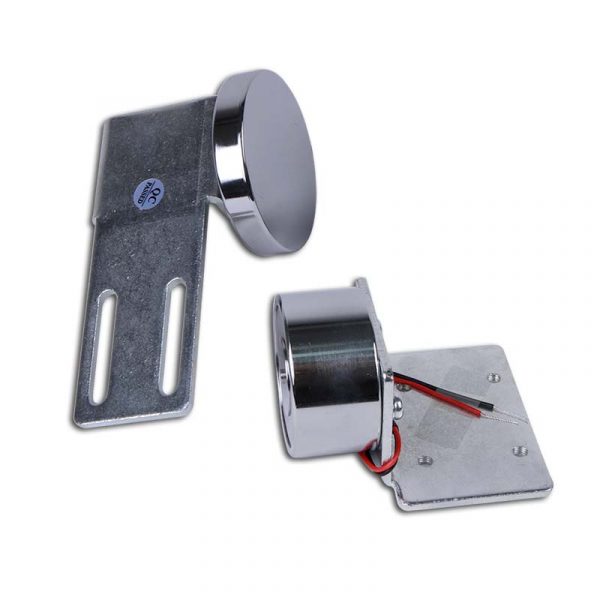

M-213F Electric Magnetic lock

Universal electric magnetic locking device for automatic sliding doors.
(Need adapter module for EC100 or Gilgen SLM model)

  • Linear holding force: 60kgs max.
  • Input: DC12V or DC24V

$30.00

SKU: M-213F Category: Tag:

Description

Electric Magnetic lock dedicated for automatic sliding doors

A universal and economical locking solution for automatic sliding door system. Works on most of automatic sliding doors, automatic glass doors, electric power sliding doors, and telescopic doors.

(Need adapter module for EC100 or Gilgen SLM model)

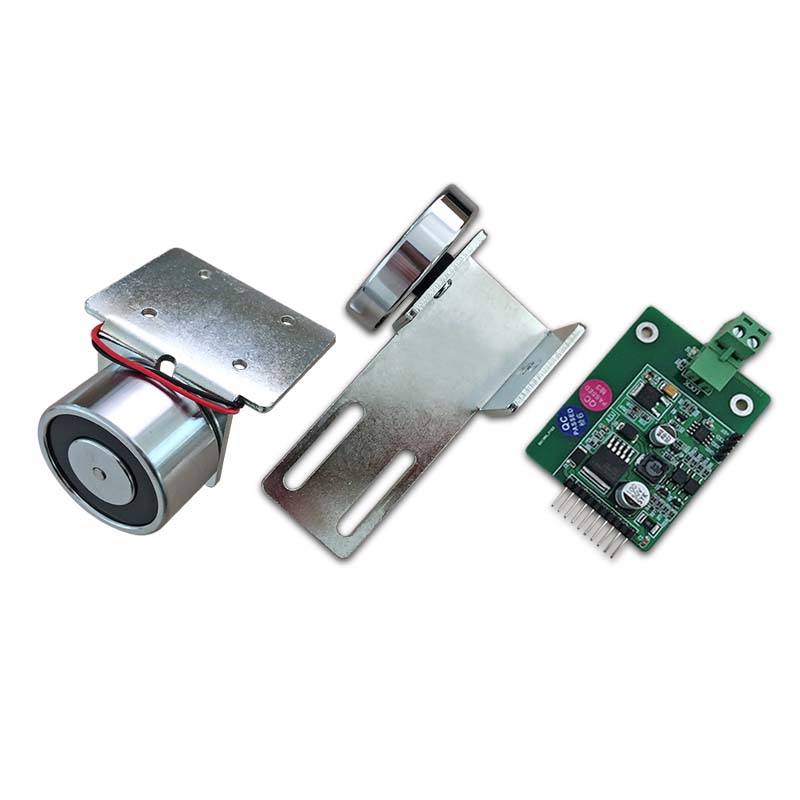

(Magnetic lock for EC100/SLM with adapter module).

EC100 SLM magnetic lock

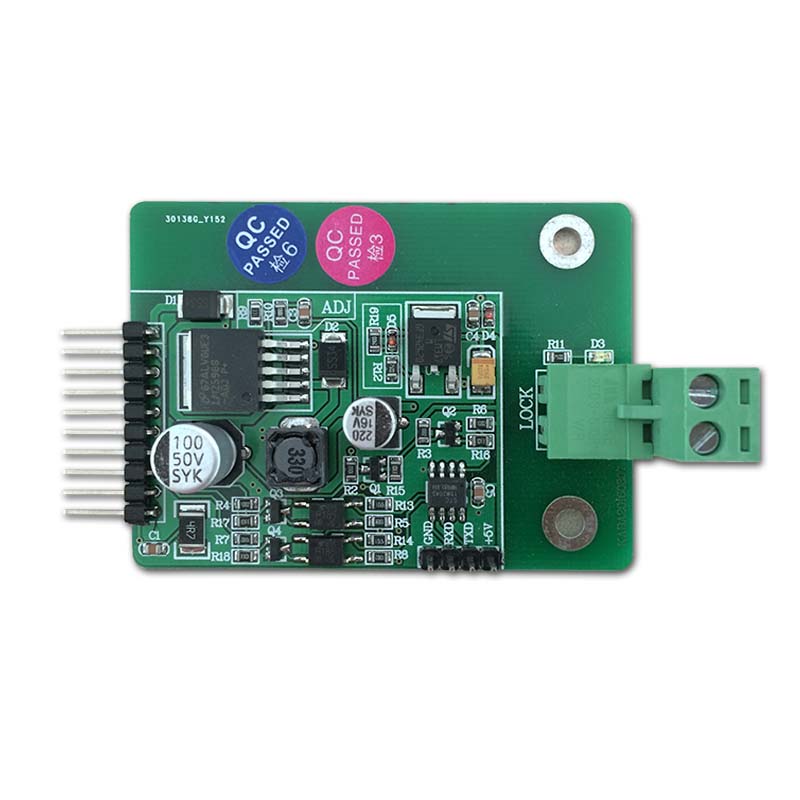

EC100 SLM Magnetic Lock module

Specification:

  • Size: 70x70x58mm
  • Linear holding force: 60kgs max.
  • Input: DC12V, DC24V
  • Currents: DC12V/180mA, DC24V/120mA
  • Temperature: -10~55℃(14-131F)
  • Humidity: 0~90%
  • N.W.: 0.8kg
  • Case count: 15pcs/carton

Additional information

Weight 0.7 kg
