ES200 Automatic Sliding Door Kit Wiring Diagrams & Connection Schemes
ES200 automatic sliding door opener is a modular design sliding door kit, it provides full connection terminals for automatic sliding door gears, program switches, activation switches, radar sensors, infrared sensors, photocell safety beam sensor, mechanical locking devices, backup battery pack, emergency stop button and other access control devices and security management facilities.
Besides, there is a reserved connection port for extended module (ES200 function module and plus module), customized functions can be programmed and implemented as per specific requirements.
The following wiring diagrams and connection schemes are applicable on Dorma ES200 automatic sliding door kit.
Power Supply & Motor Connection Scheme
Program Switch Wiring Diagram
Microwave Radar Sensor Wiring Diagram

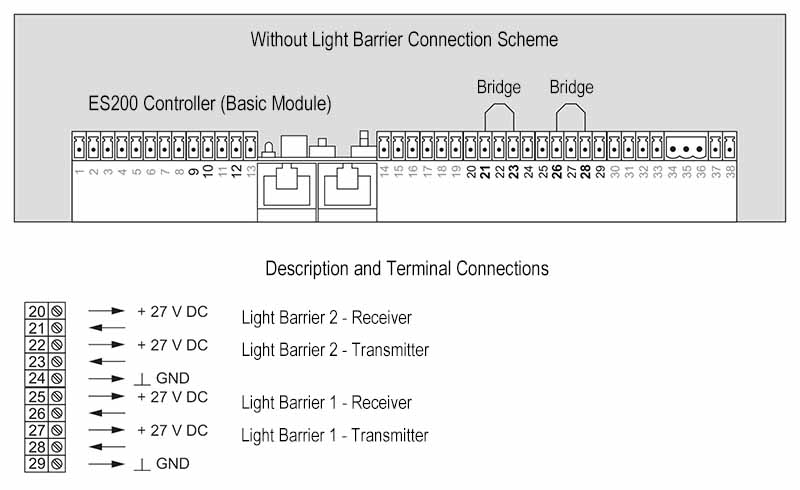

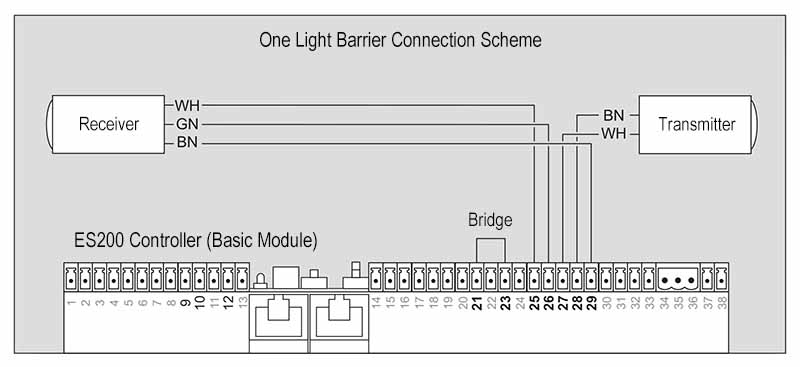

Light Barrier (Safety Beam Sensor) Wiring Diagram
Electro-mechanical Lock Wiring Diagram
WH -> WHITE
BN -> BROWN
GN -> GREEN
YE -> YELLOW
GY -> GREY
PK -> PINK
BU -> BLUE
RD -> RED
BK -> BLACK
VT -> VIOLET
GYPK -> GREY-PINK
Feel free to contact us for full ES200 & ES200 easy wiring diagram, PDF available.
wiring daigram for ES200
how to program ES200 please reply
Dear Adnan,
For regular task, you can do it on ES 200 controller itself, please refer to menu instruction of ES200 at below link.
https://www.sanwaydoor.com/es-200-automatic-door-menu-instruction/
For advanced functions or settings, you need an assistant hand-held pad to perform deeper programming.
https://www.sanwaydoor.com/products/universal-pda-for-dorma/
Hi, just want to know if all d wires that follow ES200 are all numbered. Just employed with a company that installing d controller.
i have a problem with one sliding door dorma es200. it’s not opening and closing anymore. no any error on the controller display. i tested the motor with external voltage and it’s working fine. the sensors are working properly. thanks
Hi Daniel,
How’s the controller like? Any LED light flashing or off?
Did you check the output of power supply?
Need more info. to diagnose your issue.
The led it’s not flashing. it have only one small dot. power supply it’s ok.
What number or letter does the 7-Seg. LED display?
If possible, please send me a video.
there is no any letter or number on the LED display. also i forgot to mention you that even with the program switch the door it’s not opening or closing. i will revert tomorrow with the video. thanks
here is the video
https://wetransfer.com/downloads/7ad3a4486892cf89543f366626bbb8f720181028151011/6cb6deac61f9f2687a5652ba6268281820181028151011/058067
Did you see the movie?
Hi Daniel,
Yes, but your movie did give any info., all looks good.
You can try to bypass the program switch (short bridge jumper 1 & 6) then run the ES 200 commissioning, see if there is any error indications displayed on the controller, that will help our diagnosis.
